Tractors > John Deere > 8520

John Deere 8520 Tests



John Deere 8520 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8420
8520
284.0hp
305.0hp
OCED Tractor Test 1801

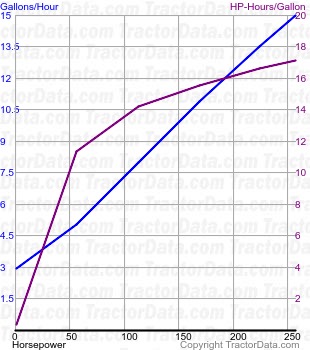

8520 fuel use from test 367
OCED Tractor Test 1801
Diesel 16-speed 4WD
May 2 - 31, 2002
Link: OCED Tractor Test 1801 file
PTO performance
Max power292.88 hp
218.4 kW
Fuel use16.1 gal/hour
60.9 l/hour
Power at rated engine speed256.49 hp
191.3 kW
Fuel use15.0 gal/hour
56.8 l/hour
Drawbar performance
Max power225.13 hp
167.9 kW
Fuel use14.9 gal/hour
56.4 l/hour
Gear 8 used for power test.
Max pull35,611 lbs
16153 kg
Gear 3 used for pull test.
