John Deere 8220 Engine

John Deere 8220 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Engine Detail
John Deere
turbocharged diesel
liquid-cooled inline
Displacement:496 ci
8.1 L
Bore/Stroke:4.56x5.06 inches
116 x 129 mm
Rated Power (ECE R24):225 hp
167.8 kW
Rated Power (EC 97/98):233 hp
173.7 kW
Maximum Power (ECE R24):250 hp
186.4 kW
Maximum Power (EC 97/68):256 hp
190.9 kW
Fuel system:electronic high-pressure common rail (HPCR)
Air cleaner:dry with secondary element
Rated RPM:2200
Idle RPM:900-2300
Operating RPM:1500-2200
Starter volts:12
Coolant capacity:35.9 qts
34.0 L
Engine Oil

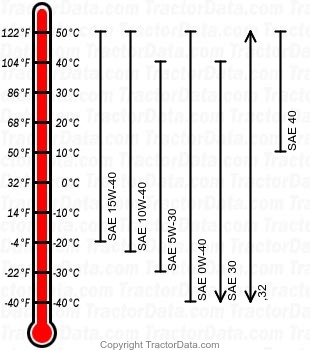

8220 diesel engine oil chart
Oil capacity:24.8 qts
23.5 L
Oil change:250 h
