Tractors > John Deere > 8120

John Deere 8120 Tests



John Deere 8120 tractor photo
2002 - 2005
8020 Series
Row-Crop tractor
Series map:
8120
8220
208.0hp
233.0hp
OCED Tractor Test 1819

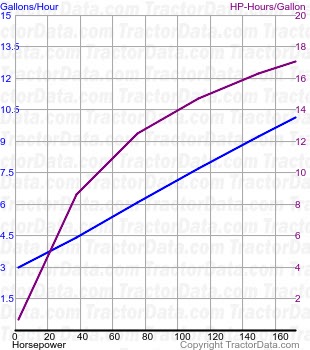

8120 fuel use from test 396
OCED Tractor Test 1819
Diesel 16-speed 4WD
March 28 - April 8, 2003
Link: OCED Tractor Test 1819 file
PTO performance
Max power199.71 hp
148.9 kW
Fuel use10.5 gal/hour
39.7 l/hour
Power at rated engine speed172.13 hp
128.4 kW
Fuel use10.1 gal/hour
38.2 l/hour
Drawbar performance
Max power148.45 hp
110.7 kW
Fuel use10.2 gal/hour
38.6 l/hour
Gear 8 used for power test.
Max pull22,308 lbs
10118 kg
Gear 3 used for pull test.
