| | 2002 - 2006 |
| Utility tractor |
|
| Transmissions overview |
| 12-speed fully synchronized |
| 16-speed partial power shift |
| 24-speed partial power shift |
| infinitely variable transmission |
| Transmission |
| Transmission: | John Deere SyncroPlus
|
| Type: | fully synchronized
|
| Gears: | 12 forward and 4 reverse
|
| Clutch: | wet disc
|
| Oil capacity: | 55 qts
52.1 L
|
| Oil type: |
|
| Three gears (1-3) plus reverse (R) in four ranges (A-D). Directional, gear, and range changes are synchronized and may be shifting while moving by using the clutch. Optional creeper adds an additional nine forward and three reverse speeds for a total of 21-forward and 7-reverse. The SyncroPlus Power Reverser adds a fourth gear in the place of reverse, and includes a left-hand reverser lever, for 16 forward and reverse speeds. |

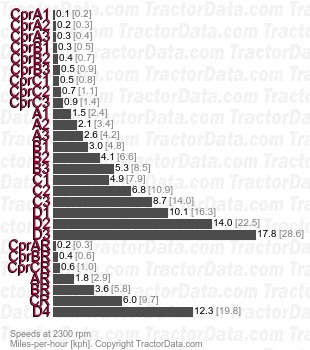

| Speeds |
| With 18.4x30 R1 rear tires. |
|
| Transmission |
| Transmission: | John Deere PowrQuad
|
| Type: | partial power shift
|
| Gears: | 16 forward and reverse
|
| Clutch: | wet disc
|
| Oil capacity: | 51.8 qts
49.0 L
|
| Oil type: |
|
| Four gears (1-4) in four ranges (A-D) with reverser lever. Clutchless power shift between gears (1-4) and direction changes (power shuttle). Range shifts (A-D) are synchronized, and may be shifted while the tractor is moving by using the clutch. Optional creeper adds an additional twelve speeds for 28 forward and reverse. The PowrQuad uses a gear-shift lever while the PowrQuad Plus (cab tractors only) offers push-button gear shifting. |

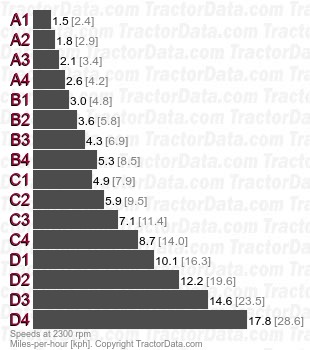

| Speeds |
| With 18.4x30 R1 rear tires. |
|
| Transmission |
| Transmission: | John Deere PowrQuad Plus
|
| Type: | partial power shift
|
| Gears: | 24 forward and reverse
|
| Clutch: | wet disc
|
| Oil capacity: | 52.8 qts
50.0 L
|
| Oil type: |
|
| Four gears (1-4) in six ranges (A-F) with reverser lever. Push-button power shifting between gears (1-4) and power shuttle directional shifting using the reverser lever. Ranges (A-F) may be shifted on the move by using the clutch. Optional AutoQuad offers automatic gear shifting to match load. |
| Speeds |
| With 18.4x30 R1 rear tires. |
|
| Transmission |
| Transmission: | John Deere IVT
|
| Type: | infinitely variable transmission
|
| Gears: | infinite forward and reverse
|
| Oil capacity: | 63.4 qts
60.0 L
|
| Oil type: |
|
| Continuously-variable transmission with built-in creeper and left-hand reverser lever. Speed-adjusting dial sets the maximum speed for each band. Setting maximum speed of Band 1 to less than 2 KPH (1.3 MPH) engages creeper mode. Only available on cab tractors. |

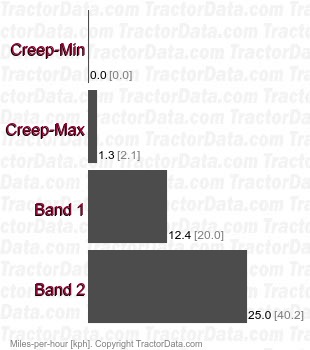

| Speeds |
|
