| | 2003 - 2007 |
| 6015 Series | | Utility tractor |
|
Series map:
6615
6715
116.7hp
129.4hp
| Transmissions overview |
| 12-speed fully synchronized |
| 16-speed power shuttle |
| 16-speed four-speed power shift |
| Transmission |
| Transmission | SyncroPlus
|
| Type | fully synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | wet disc
|
| Three synchronized gears (1-3) plus reverse (R) in four synchronized ranges (A-D). |

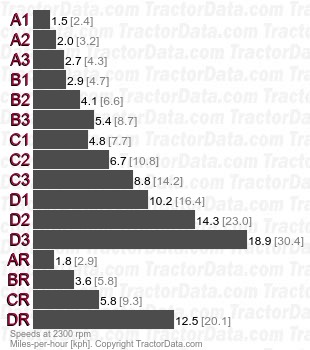

| Speeds |
| With 18.4-38 rear tires. |
|
| Transmission |
| Transmission | SyncroPlus Reverser
|
| Type | power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | wet disc
|
| Reverser option adds left-hand power shuttle lever to SyncroPlus transmission. Four synchronized gears (1-4) in four synchronized ranges (A-D) with shuttle lever. |

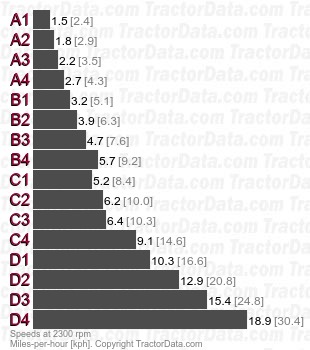

| Speeds |
| With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds. |
|
| Transmission |
| Transmission | PowrQuad
|
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Clutch | wet disc
|
| Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle lever. |
| Speeds |
| With 18.4-38 rear tires. Reverse speeds are 20% faster than forward speeds. |
|
