John Deere 5225 Engine



John Deere 5225 tractor photo
2005 - 2008
5025 Series
Utility tractor
Series map:
5225
5325
56.0hp
67.0hp
Engine Detail
John Deere
turbocharged diesel
5-cylinder
liquid-cooled
Displacement186.1 ci
3.1 L
Bore/Stroke3.385x4.134 inches
86 x 105 mm
EmissionsTier II
Power (gross)56 hp
41.8 kW
Air cleanerpaper and felt elements
Compression20.5:1
Rated RPM2400
Idle RPM900-2625
Operating RPM1600-2400
Starter volts12
Coolant capacity10 qts
9.5 L
Engine Oil

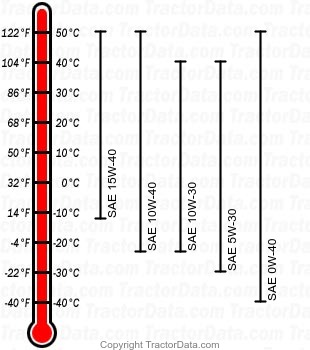

5225 diesel engine oil chart
Oil capacity11 qts
10.4 L
