John Deere 5520 Transmission


John Deere 5520 tractor photo
2002 - 2004
5000 Twenty Series
Utility tractor
5510
Series:54205520
Transmissions overview
9-speed collar shift
9-speed partially synchronized
12-speed power shuttle
Transmission
Manufacturer:John Deere
Type:collar shift
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts
37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.
Speeds
With 16.9-30 R1 rear tires.
5520  collar shift speeds
Transmission
Transmission:John Deere SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts
37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.

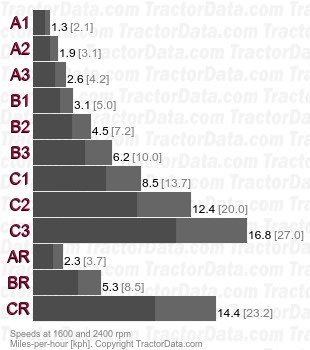

Speeds
With 16.9-30 R1 rear tires.
5520 SyncShuttle partially synchronized speeds
Transmission
Transmission:John Deere PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Oil capacity:46 qts
43.5 L
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.

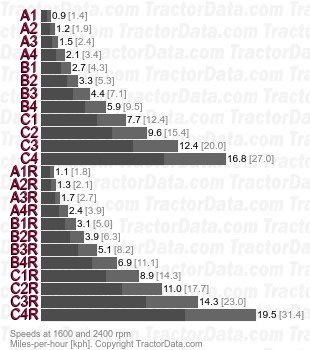

Speeds
With 16.9-30 R1 rear tires.
5520 PowrReverser power shuttle speeds
