John Deere 5303 Engine


John Deere 5303 tractor photo
2003 - 2008
5003 Series
Utility tractor
Series:520353035403
Engine Detail
John Deere
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:179 ci
2.9 L
Bore/Stroke:4.19x4.33 inches
106 x 110 mm
Power:64 hp
47.7 kW
Air cleaner:dry
Rated RPM:2400
Idle RPM:800-2650
Operating RPM:1400-2400
Firing order:1-2-3
Starter volts:12
Coolant capacity:10 qts
9.5 L
Coolant change:2000 h

Intake valve clearance:0.014 inches
0.356 mm
Exhaust valve clearance:0.018 inches
0.457 mm
Engine Oil

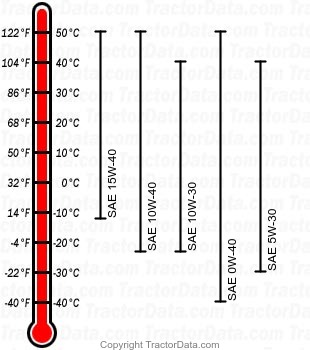

5303 diesel engine oil chart
Oil capacity:9 qts
8.5 L
Oil change:100 h
