John Deere 5103 Transmission


John Deere 5103 tractor photo
2003 - 2008
5003 Series
Utility tractor
Series:51035203
Transmissions overview
9-speed
9-speed partially synchronized
Transmission
Transmission:SyncReverser
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts
37.9 L
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, before shifting speed or range. Standard on 2WD models.

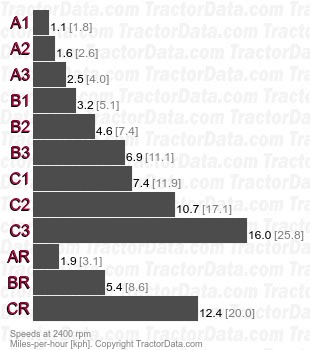

Speeds
With 13.6x28 rear tires.
5103 SyncReverser  speeds
Transmission
Transmission:SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts
37.9 L
The SyncShuttle (also identified as Top Shaft Synchronizer or TSS) is available on the 4WD models. Three speeds (1-3) plus reverse (R) in three ranges (A-C). Shifting speeds may be done while in motion, using the clutch. The tractor must be stopped to shift ranges.
Speeds
With 13.6x28 rear tires.
5103 SyncShuttle partially synchronized speeds
