| | 2004 - 2014 |
|
| CK Series | | Compact Utility tractor |
|
Series map:
CK25
CK30
25.0hp
30.0hp
| Transmission options |
| 8-speed synchronized shuttle |
| hydrostatic |
| 16-speed creeper |
| Transmission |
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Oil capacity | 28.5 qts
27.0 L
|
| Four synchronized gears in two ranges with mechanical shuttle. Shuttle and gear shifts can be made while moving, using the clutch. Tractor must be stopped, and clutch used, to shift range. |

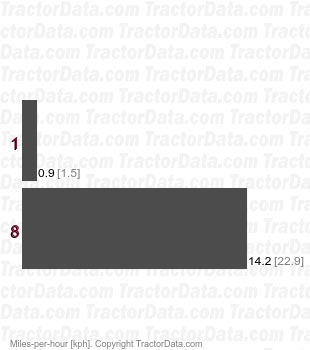

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|
| Oil capacity | 31.7 qts
30.0 L
|

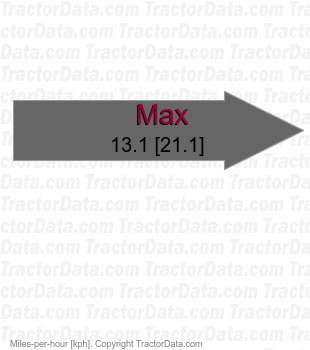

| Speeds |
|
| Transmission |
| Type | creeper
|
| Gears | 16 forward and reverse
|
| Clutch | dry disc
|
| Creeper option provides an additional low range to the entire transmission. |

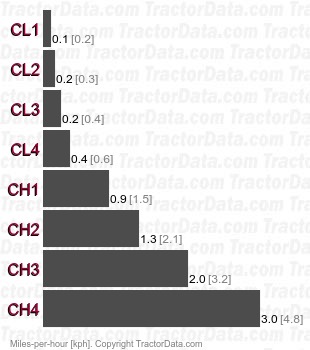

| Speeds |
|
