Tractors > Kioti > LK2554

Kioti LK2554 Attachments



Kioti LK2554 tractor photo
1994 - 2005
LK Series
Compact Utility tractor
Series map:
LK2552
LK2554
LK3052
24.4hp
24.4hp
30.5hp
Attachment overview
Front-end loader
Backhoe

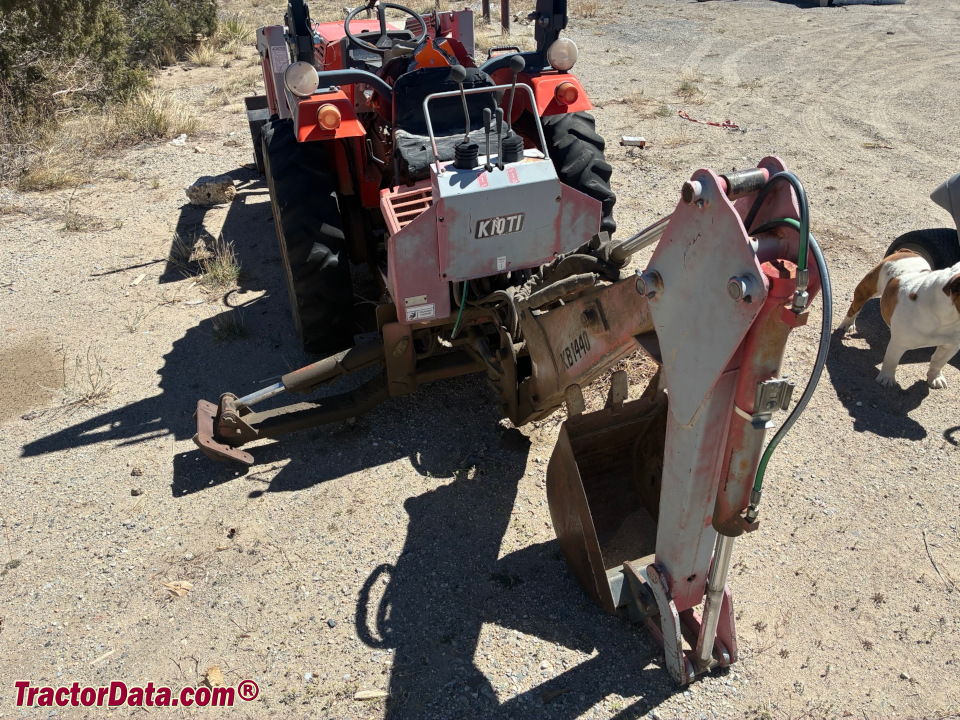

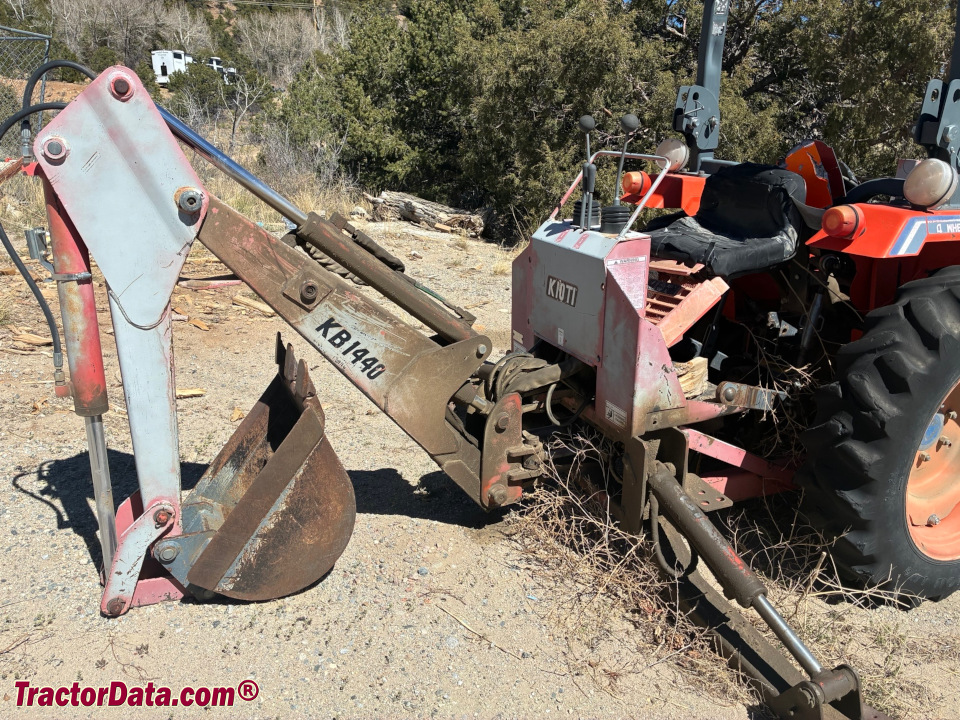

Kioti KB1440 backhoe mounted on the Kioti LK2554 compact utility tractor.
Kioti KB1440 backhoe mounted on the Kioti LK2554 compact utility tractor. (2 images)
Photos courtesy of Evan
KL1230 Loader
920 lbs lift (full at pin)
417 kg
1870 lbs breakout (at pin)
848 kg
41° dump
22 inches reach (dumped)
55 cm
55.9 inches reach (ground)
141 cm
21° rollback
94.1 inches height (at pin)
239 cm
74.4 inches clearance (dumped)
188 cm
88.2 inches clearance (level)
224 cm
boom cyl: 1.75 inches
4 cm
bucket cyl: 1.75 inches
4 cm
weight: 770 lbs
349 kg
Bucket width: 60 inches
152 cm
Kioti KB2365 Backhoe
Backhoe typeKioti KB2365 Backhoe
Weight785 lbs*Without bucket
356 kg
Transport height73.1 inches
185 cm
Bucket width9 inches
22 cm
 12 inches
30 cm
 16 inches
40 cm
 18 inches
45 cm
 24 inches
60 cm
 36 inches
91 cm
Digging depth76.4 inches
194 cm
Reach from pivot105.5 inches
267 cm
Loading height63.6 inches
161 cm
Bucket Rotation180°
Swing Arc180°
Bucket force2875 lbs
1304 kg
Dipperstick force1744 lbs
791 kg
Kioti KB2375 Backhoe
Backhoe typeKioti KB2375 Backhoe
Weight855 lbs*Without bucket
387 kg
Transport height68.1 inches
172 cm
Bucket width9 inches
22 cm
 12 inches
30 cm
 16 inches
40 cm
 18 inches
45 cm
 24 inches
60 cm
 36 inches
91 cm
Digging depth116.1 inches
294 cm
Reach from pivot116.1 inches
294 cm
Loading height72.4 inches
183 cm
Bucket Rotation180°
Swing Arc180°
Bucket force2675 lbs
1213 kg
Dipperstick force2105 lbs
954 kg
