| | 1997 - 1999 |
| 3000 Series | | Utility tractor |
|
Series map:
3011
3021
36.0hp
36.0hp
| Transmission |
| Type | gear
|
| Gears | 8 forward and 6 reverse
|
| Clutch | dry disc
|
| Oil capacity | 10.5 qts
9.9 L
|
| Transmission operated with clutch and two levers. The mode selection lever chooses between forward, reverse, or netural. The range selection lever chooses one of eight gears, although SL1 and SL2 are forward only. |

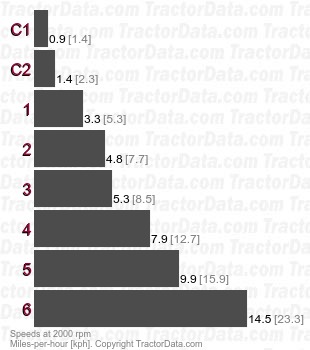

| Speeds |
| With 11.2-28 rear tires. |
|
