John Deere WA-17 Engine


John Deere WA-17 tractor photo
1968 - 1970
Four-wheel Drive (4WD) tractor
Wagner built
Series map:
WA-14
WA-17
225.0hp
280.0hp
Engine Detail
Cummins NT855C1
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power280 hp
208.8 kW
Air cleanerdry
Compression14.9:1
Rated RPM2100
Starter volts24
Coolant capacity50 qts
47.3 L
Engine Oil

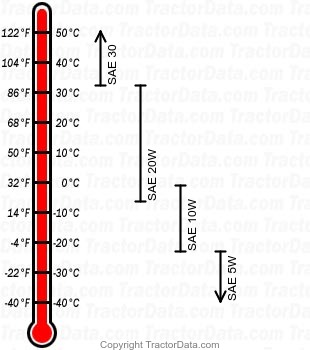

WA-17 diesel engine oil chart
Oil capacity40 qts
37.9 L
Oil change200 h
