Kubota L3450 Transmission


Kubota L3450 tractor photo
1990 - 1993
L50 Series
Compact Utility tractor
Series map:
L2950
L3450
L3650
31.7hp
36.7hp
40.5hp
Transmissions overview
8-speed mechanical shuttle
8-speed
Transmission
Typemechanical shuttle
Gears8 forward and reverse
Four gears (1-4) in two ranges (Low-High) with left-hand reverser lever. Gears shifted with right-hand gear shift on the console. Ranges shifted with left-hand lever beside seat. Shuttle shifting is synchronized, using the clutch and at low engine RPMs. Tractor must be stopped to shift ranges. The transmission may be equipped with a dual-stage clutch. This can be identified if the PTO shift has 1000 RPMs on the left, and 540 RPMs on the right.
Speeds
With 12.4-24 rear tires. Reverse speeds are about 10% slower than forward.

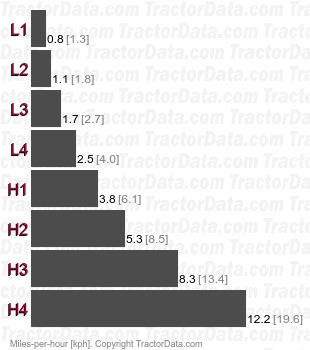

L3450  mechanical shuttle speeds
Transmission
TransmissionKubota Glide Shift
Gears8 forward and reverse
Clutchdry disc
Oil capacity28.5 qts
27.0 L

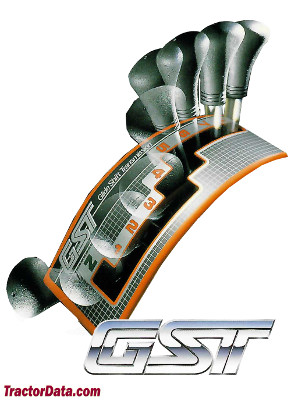

Kubota Glide Shift (GST) allows for on-the-go shifting without using the clutch. Transmission should be shifted one gear at a time using the left-hand gear lever. Forward-reverse shuttle shifting may be done without the clutch.
Speeds
With 12.4-24 rear tires. Reverse speeds are about 20% slower than forward.

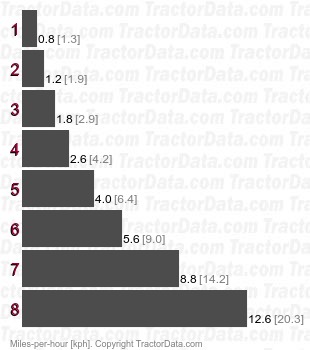

L3450 Glide Shift  speeds
Shift Pattern
Kubota L3450 transmission controls
