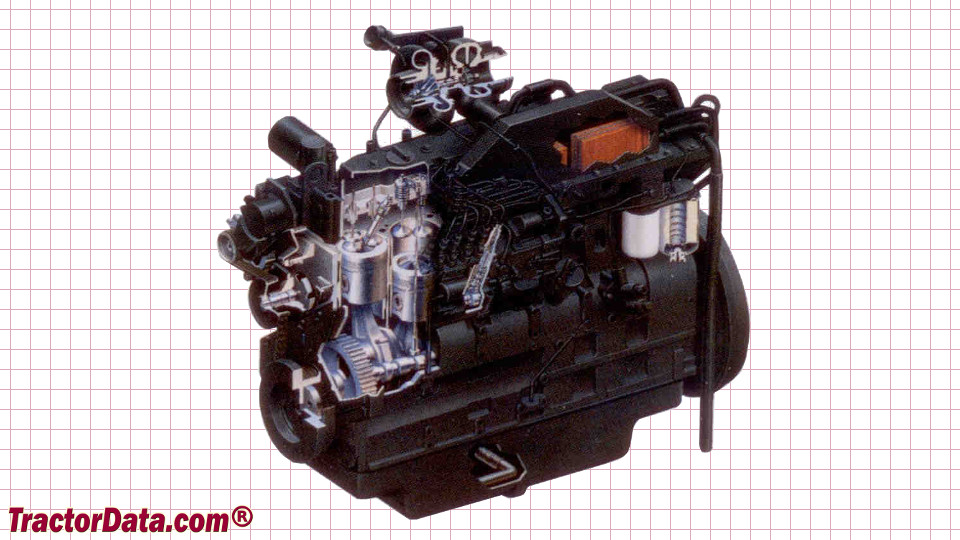

CaseIH 9310 Engine
|
|
| Engine Detail | |
| CDC 6TA | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 505 ci 8.3 L |
| Bore/Stroke | 4.49x5.31 inches 114 x 135 mm |
| Power (gross) | 205 hp 152.9 kW |
| Rated RPM | 2100 |
| Idle RPM | 850-2310 |
| Starter volts | 12 |
| Oil capacity | 22.2 qts 21.0 L |
| Oil change | 250 h |
| Coolant capacity | 29.5 qts 27.9 L |
| CaseIH 9310 Engine | |
 |
