Tractors > CaseIH > 9270

CaseIH 9270 Tests



CaseIH 9270 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
9260
9270
9280
300.0hp
335.0hp
375.0hp
OCED Tractor Test 1659

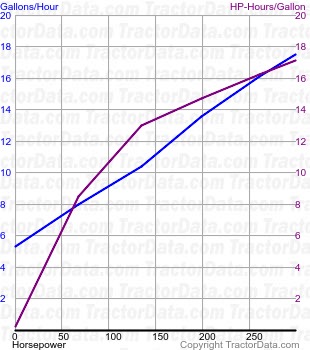

9270 fuel use from test 114
OCED Tractor Test 1659
Diesel SyncroShift 4WD
June 16 - 19, 1992
Link: OCED Tractor Test 1659 file
PTO performance
Max power317.50 hp
236.8 kW
Fuel use17.2 gal/hour
65.1 l/hour
Power at rated engine speed299.06 hp
223.0 kW
Fuel use17.5 gal/hour
66.2 l/hour
Drawbar performance
Max power264.77 hp
197.4 kW
Fuel use17.4 gal/hour
65.9 l/hour
Gear 4 used for power test.
Max pull34,197 lbs
15511 kg
