CaseIH 7220 Engine


CaseIH 7220 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7210
7220
7230
144.4hp
172.2hp
188.9hp
Engine Detail
CDC
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement504.5 ci
8.3 L
Bore/Stroke4.488x5.315 inches
114 x 135 mm
Fuel systemmechanical injection
Air cleanerdual paper elements
Pre-heatingblock heater OptOptional
Compression16.5:1
Rated RPM2200
Starter volts12
Oil capacity22 qts
20.8 L
Coolant capacity28 qts
26.5 L

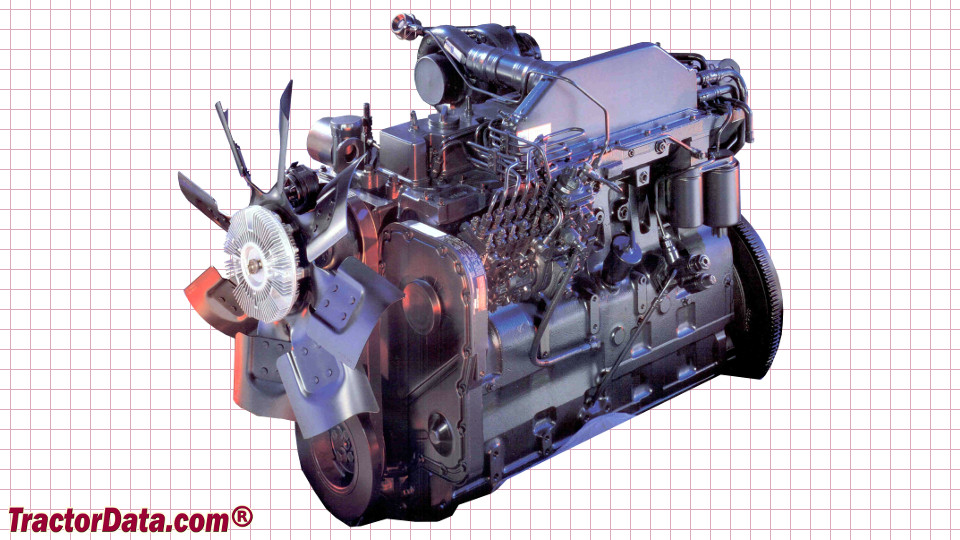

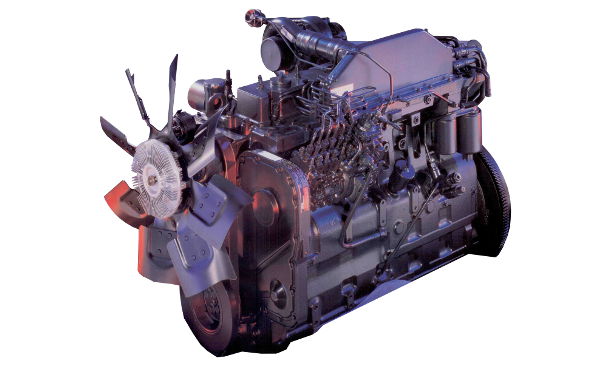

CaseIH 7220 Engine
CaseIH 7220 engine image
