| | 1994 - 1996 |
| Magnum 7200 Series | | Row-Crop tractor |
|
Series map:
7210
7220
144.4hp
172.2hp
| Transmissions overview |
| 18-speed full power shift |
| 24-speed creeper |
| Transmission |
| Type | full power shift
|
| Gears | 18 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|

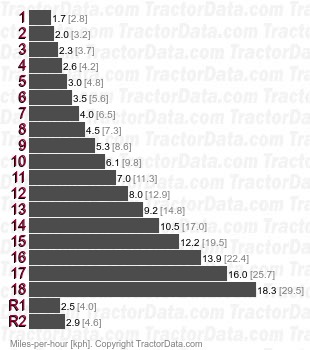

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 6 reverse
|

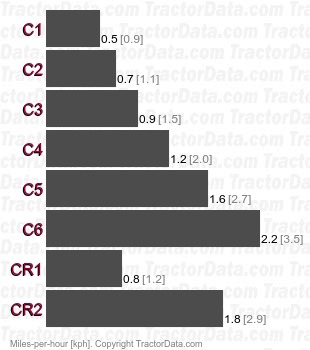

| Speeds |
|
