CaseIH 7150 Tests



CaseIH 7150 tractor photo
1990 - 1993
Magnum Series
Row-Crop tractor
Series map:
7140
7150
216.7hp*
238.9hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1663

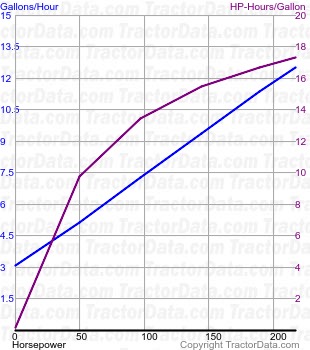

7150 fuel use from test 121
OCED Tractor Test 1663
Diesel 18-speed 4WD
November 3 - 13, 1992
Link: OCED Tractor Test 1663 file
PTO performance
Max power240.99 hp
179.7 kW
Fuel use13.1 gal/hour
49.6 l/hour
Power at rated engine speed216.83 hp
161.7 kW
Fuel use12.5 gal/hour
47.3 l/hour
Drawbar performance
Max power190.56 hp
142.1 kW
Fuel use12.5 gal/hour
47.3 l/hour
Gear 7 used for power test.
Max pull19,098 lbs
8662 kg
Gear 6 used for pull test.
