CaseIH 5120 Maxxum Transmission


CaseIH 5120 Maxxum tractor photo
1990 - 1991
Maxxum Series
Utility tractor
Series:5120 Maxxum5130
5220
Transmissions overview
16-speed fully synchronized
16-speed partial power shift
24-speed creeper
Transmission
Type:fully synchronized
Gears:16 forward and 12 reverse
Four speeds (1-4) in four ranges (I-IV). Synchronized shifting between speeds and ranges with the clutch. Power shuttle shifting with column-mounted left-hand reverser lever.
Speeds
With 18.4-34 rear tires.

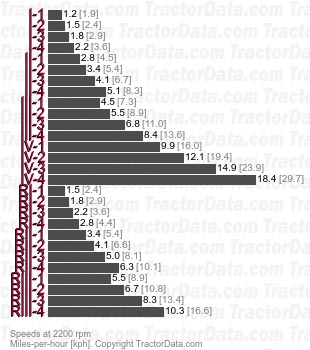

5120 Maxxum  fully synchronized speeds
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Four speeds (1-4) in four ranges (I-IV). Power shift between speeds in range. Ranges are synchronized with clutch. Power shuttle shifting with column-mounted left-hand reverser lever.
Speeds
With 18.4-34 rear tires.
5120 Maxxum  partial power shift speeds
Transmission
Type:creeper
Gears:24 forward and 20 reverse
The optional creeper range could be added to the synchronized or power shift transmission. Creeper adds an additional eight (8) gears forward and reverse.
Speeds
With 18.4-34 rear tires.

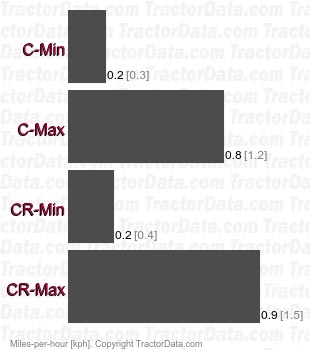

5120 Maxxum  creeper speeds
