Tractors > CaseIH > 3594

CaseIH 3594 Tests



CaseIH 3594 tractor photo
1985 - 1988
Row-Crop tractor
Series map:
3394
3594
180.0hp*
202.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1584

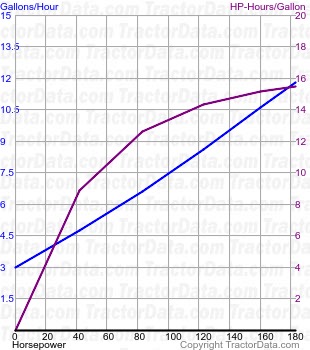

3594 fuel use from test 1584
Nebraska Tractor Test 1584
Diesel 24-speed 4WD
October 16 - 31, 1985
Link: Nebraska Tractor Test 1584 file
PTO performance
Power at rated engine speed182.27 hp
135.9 kW
Fuel use11.8 gal/hour
44.7 l/hour
Drawbar performance
Max power160.39 hp
119.6 kW
Fuel use11.7 gal/hour
44.3 l/hour
Gear 16 used for power test.
Max pull20384 lbs
9246 kg
Gear 1-4 used for pull test.
