Tractors > CaseIH > 1896

CaseIH 1896 Tests



CaseIH 1896 tractor photo
1985 - 1989
96 Series
Row-Crop tractor
Series map:
1896
2096
105.6hp*
128.9hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1548

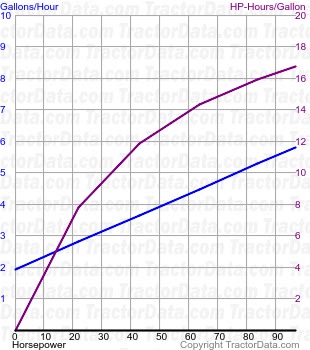

1896 fuel use from test 1548
Nebraska Tractor Test 1548
Diesel 12-speed 2WD
October 24 - November 7, 1984
Link: Nebraska Tractor Test 1548 file
PTO performance
Power at rated engine speed95.92 hp
71.5 kW
Fuel use5.7 gal/hour
21.6 l/hour
Drawbar performance
Max power84.51 hp
63.0 kW
Fuel use5.7 gal/hour
21.6 l/hour
Gear 3-2 used for power test.
Max pull12,357 lbs
5605 kg
Gear 1-2 used for pull test.
