| | 1983 - 1988 |
| 94 Series | | Utility tractor |
|
Series map:
1394
1494
77.0hp
85.0hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed four-speed power shift |
| 15-speed creeper |

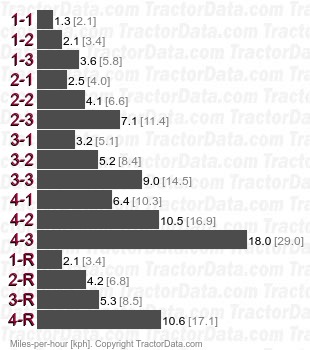

| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 45.6 qts
43.2 L
|
| Three gears, plus reverse, in four ranges. Shifts between second and third gear are synchronized. |
| Speeds |
| With 18.4-34 rear tires. |
|

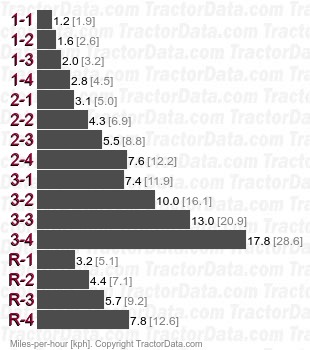

| Transmission |
| Transmission | Hydra-Shift
|
| Type | four-speed power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 45.6 qts
43.2 L
|
| Four power-shift gears in three ranges, plus reverse. |
| Speeds |
| With 18.4-34 rear tires. |
|

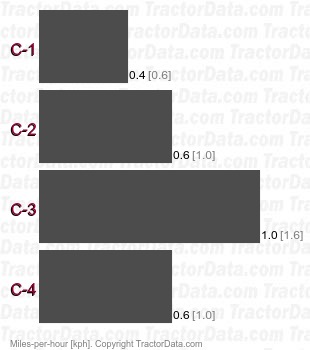

| Transmission |
| Type | creeper
|
| Gears | 15 forward and 5 reverse
|
| Oil capacity | 45.6 qts
43.2 L
|
| Optional creeper provides an additional range to the synchromesh transmission. |
| Speeds |
| With 18.4-34 rear tires. |
|
