| | 1998 - 2002 |
| CX Utility Series | | Utility tractor |
|
| Transmissions overview |
| 8-speed synchronized |
| 16-speed partial power shift |
| 8-speed |
| 16-speed creeper |
| Transmission |
| Type: | synchronized
|
| Gears: | 8 forward and 4 reverse
|
| Clutch: | 12-inch dry disc
|
| Oil capacity: | 36 qts
34.1 L (2WD)
|
| | 38.6 qts
36.5 L (4WD)
|
| Transmission |
| Type: | partial power shift
|
| Gears: | 16 forward and 8 reverse
|
| Clutch: | 12-inch dry disc
|
| Oil capacity: | 36 qts
34.1 L (2WD)
|
| | 38.6 qts
36.5 L (4WD)
|

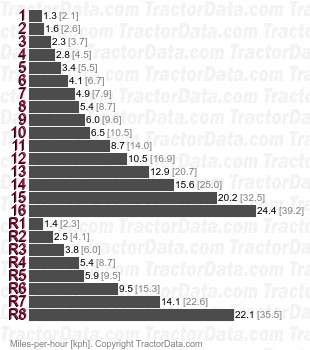

| Speeds |
|
| Transmission |
| Gears: | 8 forward and reverse
|
| Oil capacity: | 36 qts
34.1 L (2WD)
|
| | 38.6 qts
36.5 L (4WD)
|
| Transmission |
| Type: | creeper
|
| Gears: | 16 forward and 8 reverse
|
