CaseIH CX70 Transmission


CaseIH CX70 tractor photo
1998 - 2002
CX Utility Series
Utility tractor
Series map:
CX60
CX70
CX80
64.0hp
73.0hp
84.0hp
Transmissions overview
8-speed synchro shuttle
16-speed partial power shift
24-speed creeper
Transmission
Typesynchro shuttle
Gears8 forward and reverse
Clutch12-inch dry disc
Oil capacity36.4 qts (2WD)
34.4 L
 39.1 qts (4WD)
37.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.
Transmission
Typepartial power shift
Gears16 forward and 8 reverse
Clutch12-inch dry disc
Oil capacity36.4 qts (2WD)
34.4 L
 39.1 qts (4WD)
37.0 L
Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.

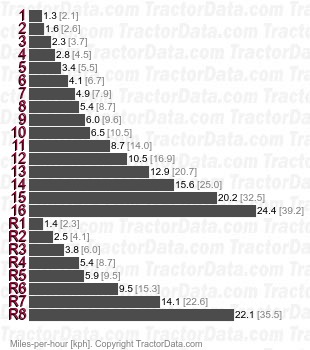

Speeds
CX70  partial power shift speeds

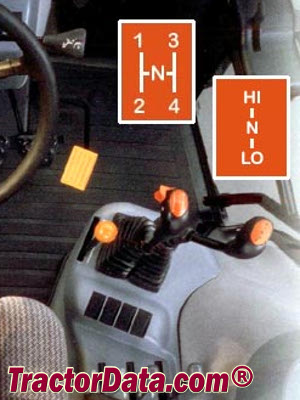

Shift Pattern
CaseIH CX70 transmission controls
Transmission
Typecreeper
Gears24 forward and 12 reverse
