| | 1948 - 1951 |
| Utility tractor |
|
Series map:
TO-20
28.2hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Continental Z-120 |
| gasoline |
| 4-cylinder 8-valve |
| liquid-cooled inline overhead valve |
| Displacement | 120 ci
2.0 L
|
| Bore/Stroke | 3.1875x3.75 inches
81 x 95 mm
|
| Fuel system | Marvel Schebler TSX updraft carburetor
|
| Air cleaner | oil bath
|
| Compression | 6.1:1
|
| Rated RPM | 2200
|
| Torque | 88 lb-ft
119.3 Nm
|
| Torque RPM | 1200
|
| Firing order | 1-3-4-2
|
| Starter volts | 6
|

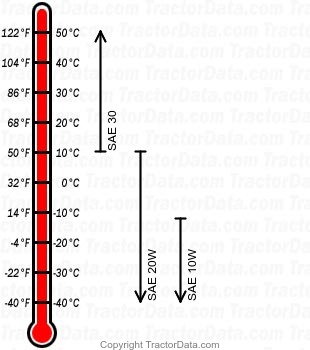

| Engine Oil |
|
| Oil capacity | 6 qts
5.7 L
|
