Steiger Cougar III ST-270 Transmission


Steiger Cougar III ST-270 tractor photo
1977 - 1981
III Series
Four-wheel Drive (4WD) tractor
Series map:
Cougar III ST-270
270.0hp
Transmission options
10-speed
20-speed
Transmission
Gears10 forward and 2 reverse
Clutchhydraulic dry discs
Speeds
Cougar III ST-270   speeds
Transmission
TransmissionDana-Spicer 1010-3B
Gears20 forward and 4 reverse
Clutch356mm dry disc
Ten-speed transmission with two-speed transfer case.
Speeds

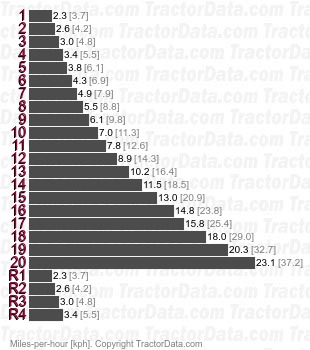

Cougar III ST-270 1010-3B  speeds
