Tractors > Steiger > Wildcat III ST-210

Steiger Wildcat III ST-210 Engine



Steiger Wildcat III ST-210 tractor photo
1976 - 1980
III Series
Four-wheel Drive (4WD) tractor
Series map:
Wildcat III ST-210
Bearcat III ST-220
210.0hp
220.0hp
Engine Detail
Caterpillar 3208
diesel
8-cylinder
liquid-cooled V-8
Displacement636 ci
10.4 L
Bore/Stroke4.50x5.00 inches
114 x 127 mm
Power210 hp
156.6 kW
Fuel systemdirect injection
Compression16.5:1
Rated RPM2800
Idle RPM850-3000
Torque485 lb-ft
657.7 Nm
Torque RPM1400
Starterelectric
Starter volts12
Coolant capacity42 qts
39.7 L
Engine Oil

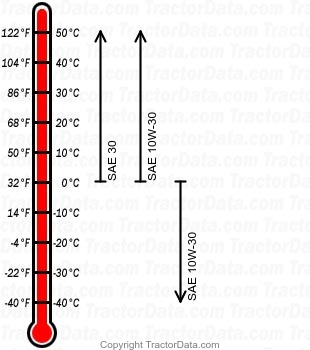

Wildcat III ST-210 diesel engine oil chart
Oil capacity14 qts
13.2 L
Oil change100 h
Steiger Wildcat III ST-210 Engine

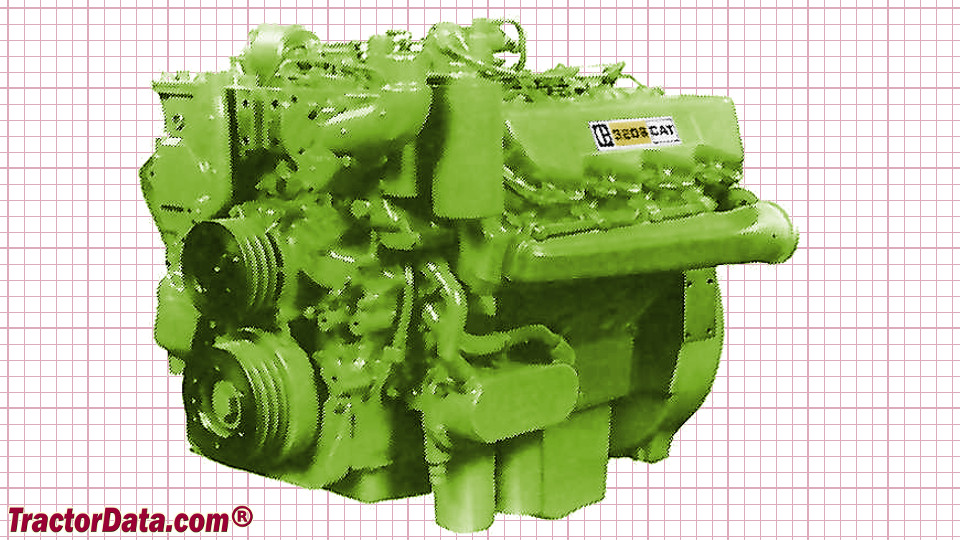

Steiger Wildcat III ST-210 engine image
