Tractors > Minneapolis-Moline > ZTU

Minneapolis-Moline ZTU Tests



Minneapolis-Moline ZTU tractor photo
1936 - 1948
ZT Series
Row-Crop tractor
Series map:
ZTU
29.4hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 290: kerosene 5-speed 2WD
NTTL 352: gasoline 5-speed 2WD
Nebraska Tractor Test 290

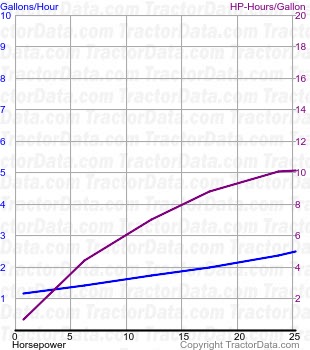

ZTU fuel use from test 290
Nebraska Tractor Test 290
Kerosene 5-speed 2WD
October 4 - 12, 1937
Link: Nebraska Tractor Test 290 file
Belt power (max)26.84 hp
20.0 kW
Belt fuel use (max)2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power20.53 hp
15.3 kW
Gear 3 used for power test.
Max pull3,262 lbs
1479 kg
Gear 1 used for pull test.
Nebraska Tractor Test 352

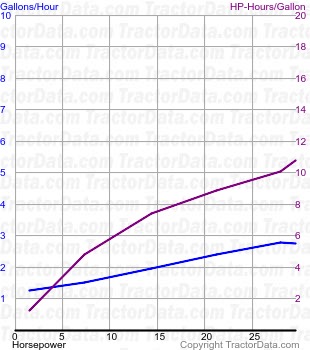

ZTU fuel use from test 352
Nebraska Tractor Test 352
Gasoline 5-speed 2WD
September 3 - 7, 1940
Link: Nebraska Tractor Test 352 file
Belt power (max)31.14 hp
23.2 kW
Belt fuel use (max)2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power26.39 hp
19.7 kW
Gear 4 used for power test.
Max pull3,254 lbs
1476 kg
Gear 1 used for pull test.
