Minneapolis-Moline RTU Engine

Minneapolis-Moline RTU tractor photo
1939 - 1954
R Series
Row-Crop tractor
Engine Detail
Displacement165 ci
2.7 L
Bore/Stroke3.625x4.00 inches
92 x 102 mm
Fuel systemMarvel Schebler 1-inch carburetor
Air cleaneroil bath
Rated RPM1500
Firing order1-3-4-2
Starter volts6
Oil capacity7 qts
6.6 L
Coolant capacity13.5 qts
12.8 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.025 inches
0.635 mm
Exhaust valve clearance0.014 inches
0.356 mm
Minneapolis-Moline RTU Engine

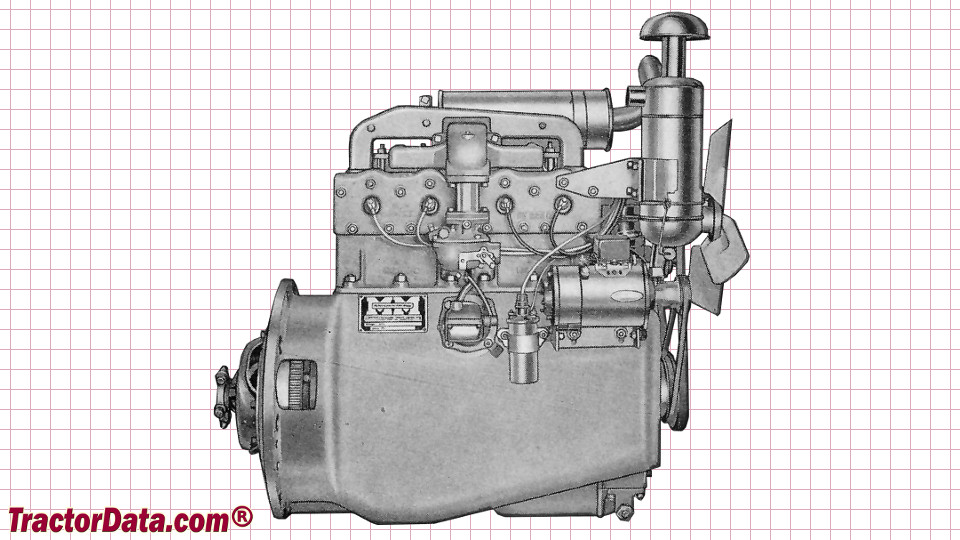

Minneapolis-Moline RTU engine image
