Caterpillar R5 Tests

Caterpillar R5 tractor photo
1934 - 1940
Agricultural Crawler tractor
Nebraska Tractor Test 224

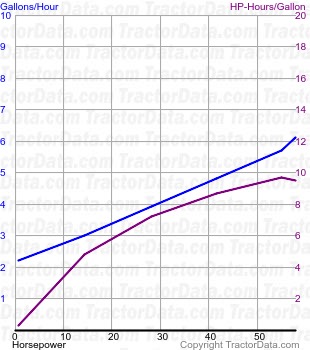

R5 fuel use from test 224
Nebraska Tractor Test 224
Gasoline 4-speed crawler
July 12 - 20, 1934
Link: Nebraska Tractor Test 224 file
Belt power (max)58.89 hp
43.9 kW
Drawbar performance
Max power49.44 hp
36.9 kW
Gear 2 used for power test.
Max pull10834 lbs
4914 kg
Gear 1 used for pull test.
