Caterpillar Twenty Tests



Caterpillar Twenty tractor photo
1927 - 1931
Agricultural Crawler tractor
Series map:
Twenty
32.8hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 150

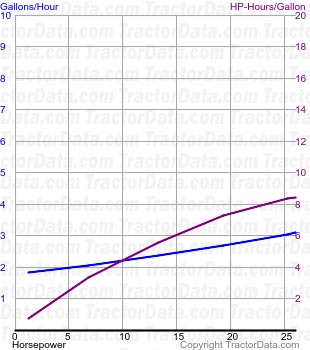

Twenty fuel use from test 150
Nebraska Tractor Test 150
Gasoline 3-speed crawler
May 17 - 28, 1928
Link: Nebraska Tractor Test 150 file
Belt power (max)29.49 hp
22.0 kW
Belt fuel use (max)3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power26.32 hp
19.6 kW
Gear 1 used for power test.
Max pull5721 lbs
2595 kg
Gear 1 used for pull test.
