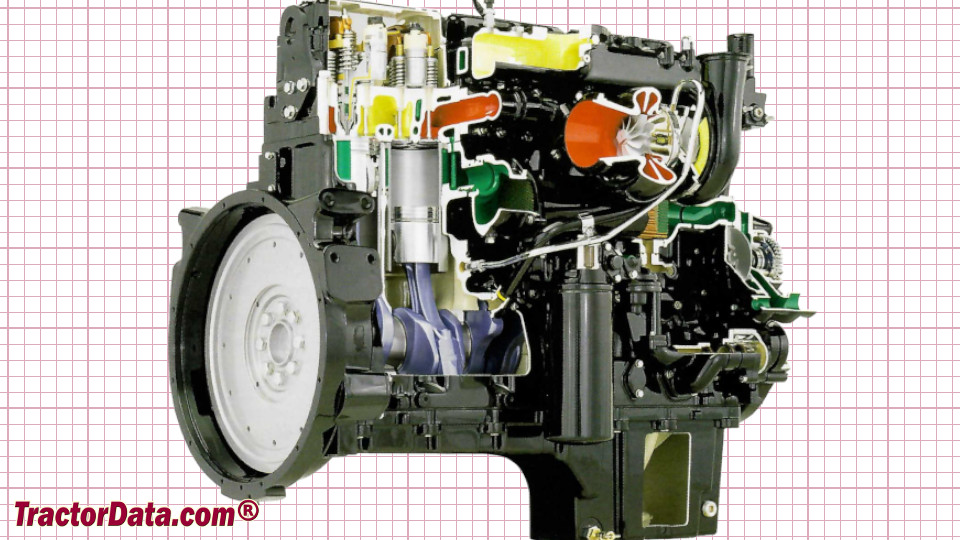

| Engine Detail | |
| Caterpillar | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 629 ci 10.3 L |
| Bore/Stroke | 4.92x5.51 inches 125 x 140 mm |
| Power | 310 hp 231.2 kW |
| Air cleaner | dual paper elements |
| Compression | 16:1 |
| Rated RPM | 2100 |
| Starter volts | 12 |
| Coolant capacity | 60 qts 56.8 L |
