| | 1990 - 1994 |
| 3600 Series | | Row-Crop tractor |
|
Series map:
3660
3670
155.6hp*
171.1hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Perkins |
| wastegate turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 365 ci
6.0 L
|
| Bore/Stroke | 3.94x5.00 inches
100 x 127 mm
|
| Cooling system | viscous fan
|
| Air cleaner | dry
|
| Rated RPM | 2200
|
| Starter volts | 12
|
| Oil capacity | 20 qts
18.9 L
|
| Coolant capacity | 26.4 qts
25.0 L
|

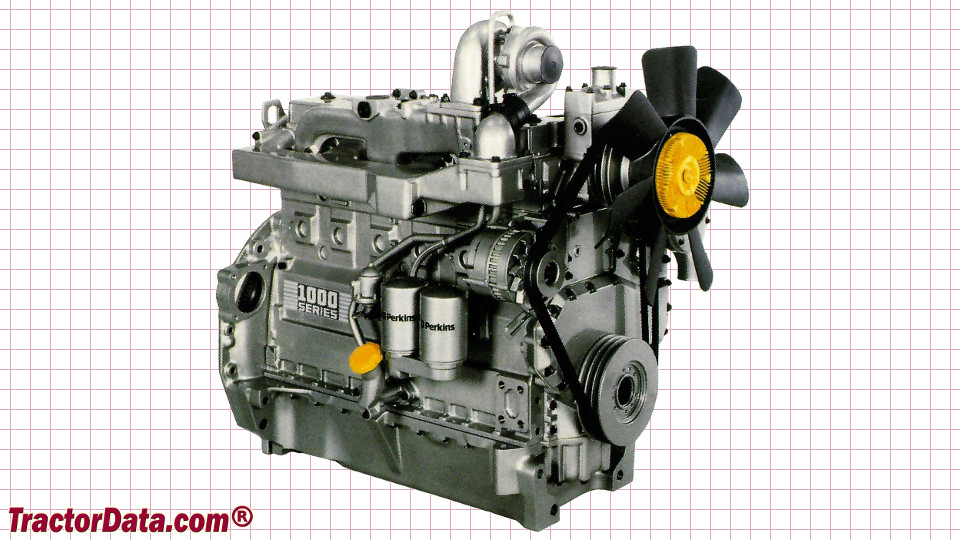

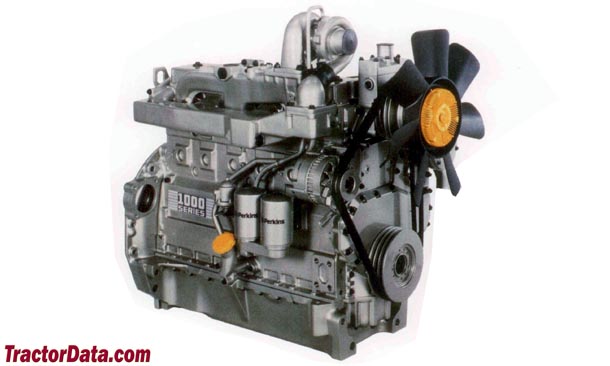

| Massey Ferguson 3660 Engine |
 |
