| | 1983 - 1987 |
| 3500 Series | | Row-Crop tractor |
|
Series map:
3525
3545
130.0hp
147.0hp
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and 12 reverse
|
| Four gears (1-4) in two ranges (low/high) plus two-speed push-button power shift. Manual shuttle. Shifts within range are synchronized. |

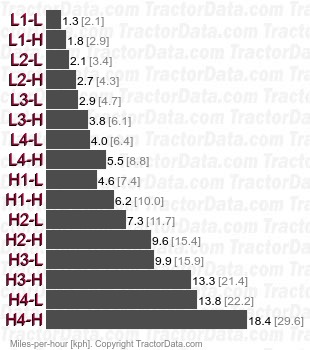

| Speeds |
| With 18.4x38 rear tires. |
|
| Shift Pattern |
 |
