Massey Ferguson 1220 Transmission


Massey Ferguson 1220 tractor photo
1995 - 1998
1200 Compact Series
Compact Utility tractor
Iseki built
Series map:
1215
1220
1225
18.0hp
21.0hp
24.3hp
Transmission options
6-speed gear
hydrostatic
9-speed creeper
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch215mm dry disc
Three gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gear or range.
Speeds
With 9.5-16 R1 rear tires.
1220  gear speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse
Speeds
With 8-16 R1 rear tires.
1220  hydrostatic speeds
Transmission
Typecreeper
Gears9 forward and 3 reverse
Optional additional creeper range for the standard transmission.
Speeds
With 9.5-16 R1 rear tires.

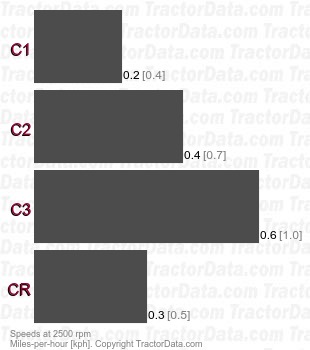

1220  creeper speeds
