Massey Ferguson 1180 Transmission


Massey Ferguson 1180 tractor photo
1992 - 1999
1100 Series
Compact Utility tractor
Series map:
1160
1180
1190
41.0hp
52.0hp
60.0hp
Transmission
Typesynchronized shuttle
Gears16 forward and reverse
Clutch275mm disc
Four gears (1-4) in four ranges (LL, L, M, and H) with shuttle. Gears 3 and 4 are synchronized.

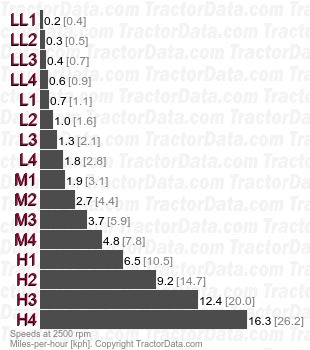

Speeds
With 14.9x28 rear tires. Reverse speeds are 5% slower than forward.
1180  synchronized shuttle speeds
