Massey Ferguson 243 Transmission

Massey Ferguson 243 tractor photo
1999 - 2003
200 Three Series
Utility tractor
Transmissions overview
8-speed sliding gear
8-speed synchro shuttle
Typesliding gear
Gears8 forward and 2 reverse
Clutchdry disc
Four gears (1-4) plus reverse (R) in two ranges (low/high)
243  sliding gear speeds
Typesynchro shuttle
Gears8 forward and reverse
Clutchdry disc
Four gears (1-4) in two ranges (low/high) with synchronized shuttle shifting.

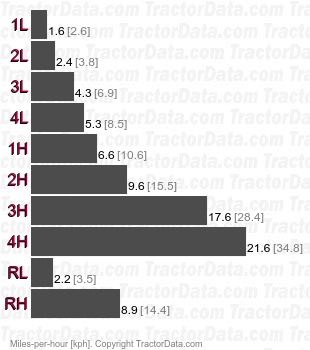

243  synchro shuttle speeds
