| | 1964 - 1975 |
| Row-Crop tractor |
|
Series map:
175
180
70.0hp*
71.1hp*
*Estimated engine power for comparison only.
| Engine options |
| Perkins 3.9L 4-cyl diesel |
| Perkins 3.9L 4-cyl gasoline |
| Continental 3.4L 4-cyl gasoline |
| Engine Detail |

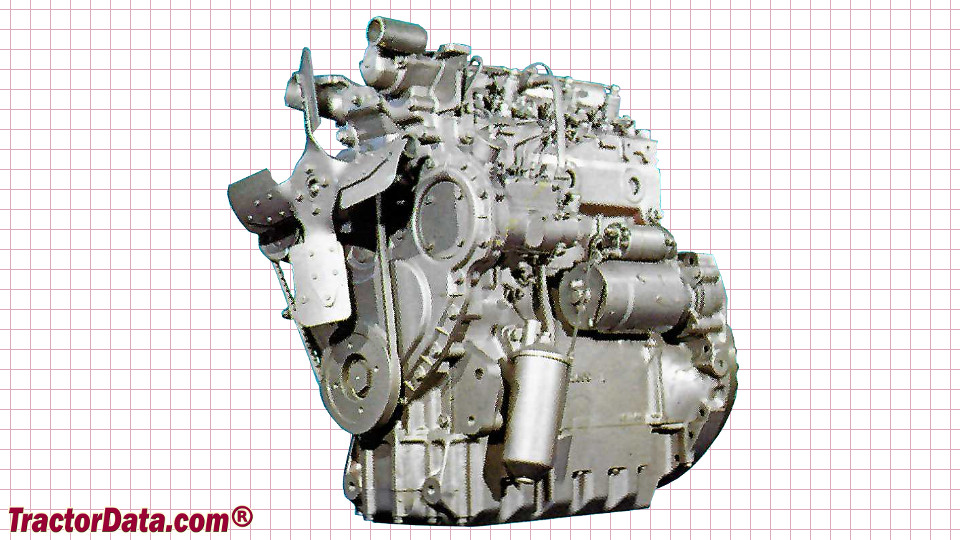

| Perkins A4.236 |
| diesel |
| 4-cylinder 8-valve |
| liquid-cooled |
| Displacement | 236 ci
3.9 L
|
| Bore/Stroke | 3.875x5.00 inches
98 x 127 mm
|
| Air cleaner | paper element
|
| Compression | 16:1
|
| Rated RPM | 2000
|
| Starter volts | 12
|
| Oil capacity | 8.5 qts
8.0 L
|
| Massey Ferguson 180 Engine |
 |
| Engine Detail |
| Perkins AG4.236 |
| gasoline |
| 4-cylinder 8-valve |
| liquid-cooled inline |
| The Perkins AG4.236 became the gasoline engine option in 1969. |
| Displacement | 236 ci
3.9 L
|
| Bore/Stroke | 3.875x5.00 inches
98 x 127 mm
|
| Air cleaner | dry
|
| Compression | 7:1
|
| Rated RPM | 2000
|
| Starter volts | 12
|
| Engine Detail |

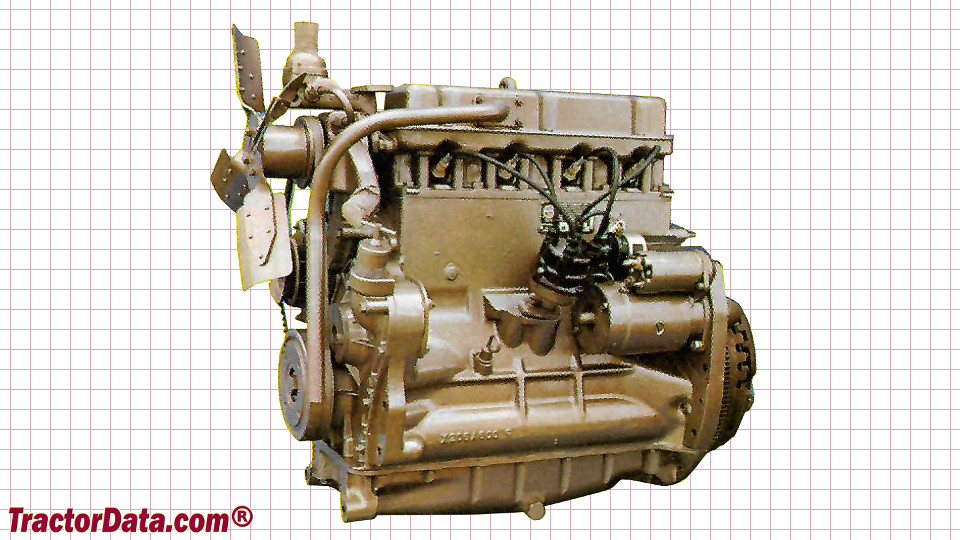

| Continental G-206 |
| gasoline |
| 4-cylinder 8-valve |
| liquid-cooled |
| The G206 was used in the Massey Ferguson 180 from 1964 to 1968. |
| Displacement | 206 ci
3.4 L
|
| Bore/Stroke | 3.812x4.50 inches
97 x 114 mm
|
| Air cleaner | dry
|
| Compression | 7.1:1
|
| Rated RPM | 2000
|
| Massey Ferguson 180 Engine |
 |
