Massey Ferguson 50 Engine


Massey Ferguson 50 tractor photo
1957 - 1964
F-40
Series:50
150
Engines overview
Perkins 2.5L 3-cyl diesel
Continental 2.2L 4-cyl gasoline
Continental 2.2L 4-cyl LP gas
Engine Detail
Perkins
diesel
3-cylinder
liquid-cooled
Displacement:152.7 ci
2.5 L
Bore/Stroke:3.60x5.00 inches
91 x 127 mm
Air cleaner:oil bath
Compression:17.4:1
Rated RPM:2000
Idle RPM:700-2150
Starter volts:12
Oil capacity:6 qts
5.7 L

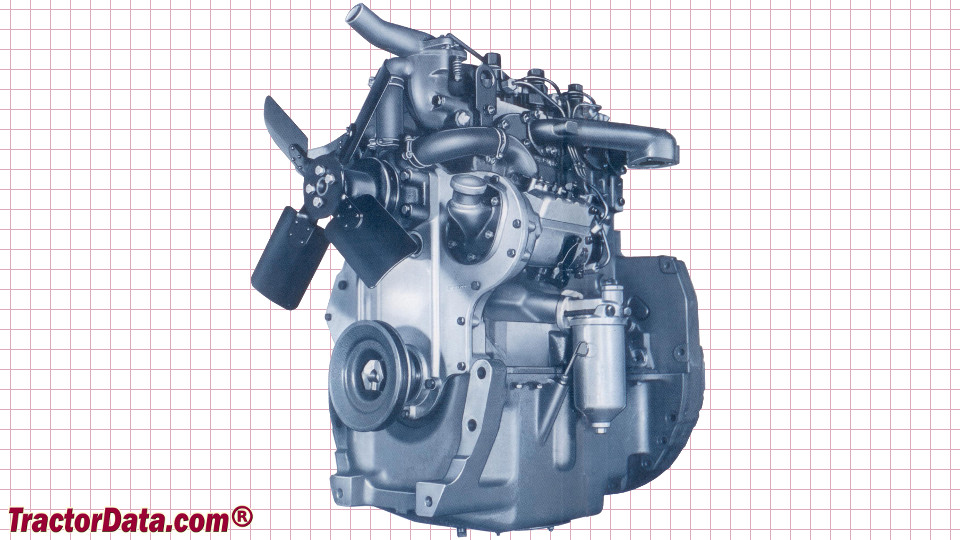

Massey Ferguson 50  engine photo

Engine Detail
Continental Z-134
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement:133.8 ci
2.2 L
Bore/Stroke:3.3125x3.875 inches
84 x 98 mm
Compression:6.6:1
Rated RPM:2000
Idle RPM:900-2000
Firing order:1-3-4-2
Starter volts:12
Oil capacity:5 qts
4.7 L
Coolant capacity:10 qts
9.5 L

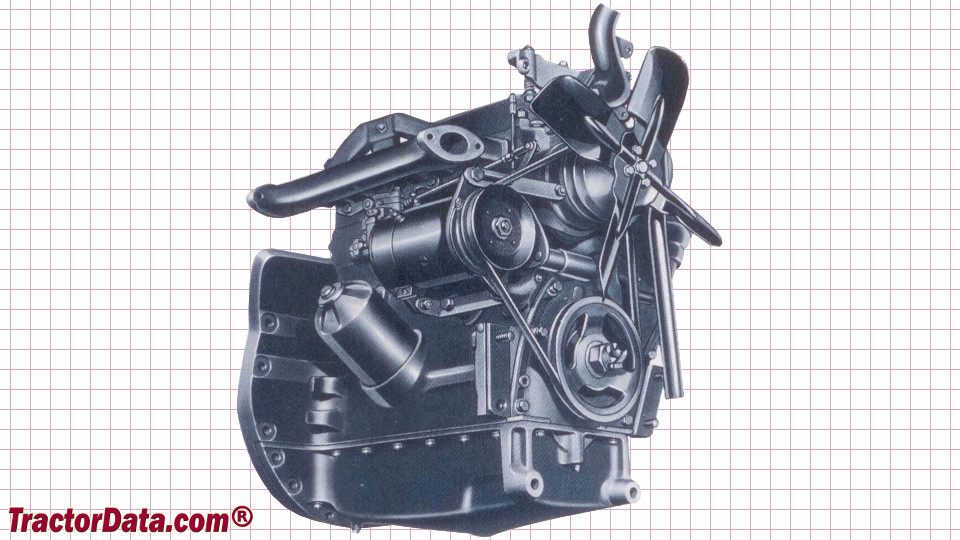

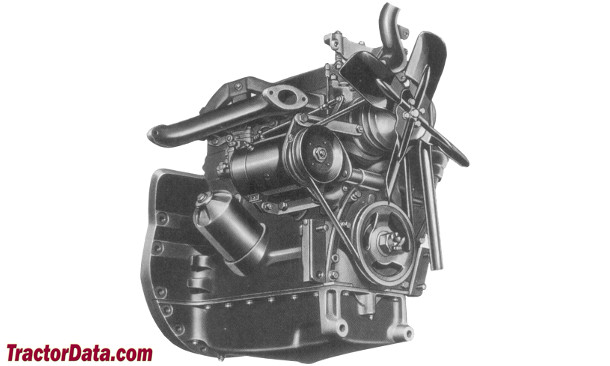

Massey Ferguson 50  engine photo

Engine Detail
Continental
LP gas
4-cylinder
liquid-cooled
Displacement:134 ci
2.2 L
Bore/Stroke:3.3125x3.875 inches
84 x 98 mm
Air cleaner:oil bath
Compression:8:1
Rated RPM:2000
Starter volts:12
