Tractors > Massey-Harris > 33

Massey-Harris 33 Engine



Massey-Harris 33 tractor photo
1952 - 1955
Row-Crop tractor
Series map:
33
40.0hp*
*Estimated engine power for comparison only.
Engine options
Continental 3.3L 4-cyl gasoline
Continental 3.3L 4-cyl diesel
Engine Detail
Continental
gasoline
4-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke3.625x4.875 inches
92 x 124 mm
Air cleaneroil bath
Compression6.3:1
Rated RPM1500
Starter volts6
Oil capacity8 qts
7.6 L
Coolant capacity18 qts
17.0 L

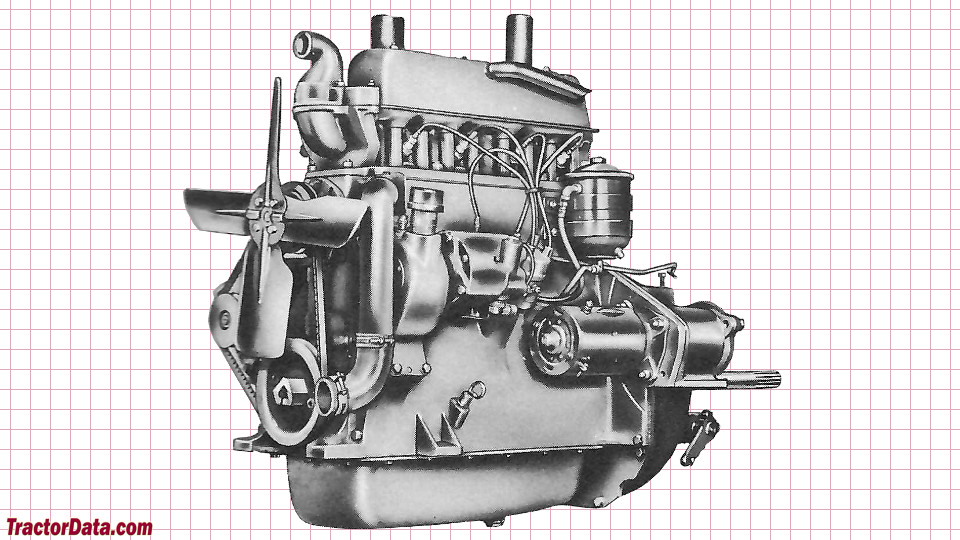

Massey-Harris 33 Engine
Massey-Harris 33 engine image
Engine Detail
Continental
diesel
4-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke3.625x4.875 inches
92 x 124 mm
Air cleaneroil bath
Compression15:1
Rated RPM1500
Oil capacity8 qts
7.6 L
Coolant capacity18 qts
17.0 L
