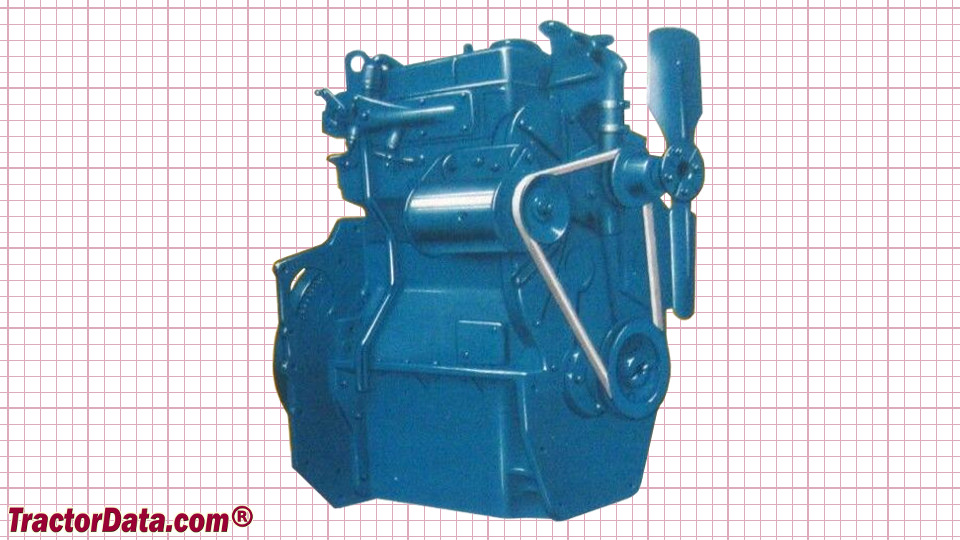

Fordson Super Dexta Engine
|
|
| Engine options | |
| Ford-Perkins 2.5L 3-cyl diesel | |
| Ford 2.5L 3-cyl diesel |
| Engine Detail | |
| Ford-Perkins F3.152 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| The original engine, used on the Super Dexta through mid-1963. | |
| Displacement | 152.7 ci 2.5 L |
| Bore/Stroke | 3.60x5.00 inches 91 x 127 mm |
| Power | 39 hp 29.1 kW |
| Compression | 17.4:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-3 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 7.66 qts 7.2 L |
| Coolant capacity | 9 qts 8.5 L |
| Fordson Super Dexta Engine | |
 |
| Engine Detail | |
| Ford | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| The upgraded engine was used on the New Super Dexta, available in June 1963. Starting with tractor serial number 09C-916556. | |
| Displacement | 152.7 ci 2.5 L |
| Bore/Stroke | 3.60x5.00 inches 91 x 127 mm |
| Power | 45 hp 33.6 kW |
| Compression | 17.4:1 |
| Rated RPM | 2250 |
| Firing order | 1-2-3 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 7.66 qts 7.2 L |
