| | 1965 - 1969 |
| 50 Series | | Row-Crop tractor |
|
Series map:
1550
1650
58.9hp*
73.3hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed partial power shift |
| 6-speed unsynchronized gear |
| Transmission |
| Transmission | Hydra-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range. |

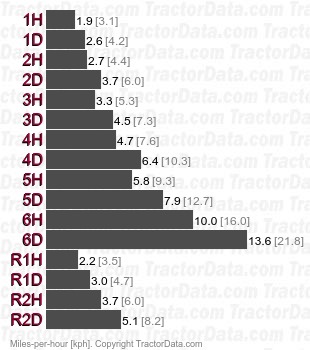

| Speeds |
|
| Shift Pattern |
 |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 32 qts
30.3 L
|

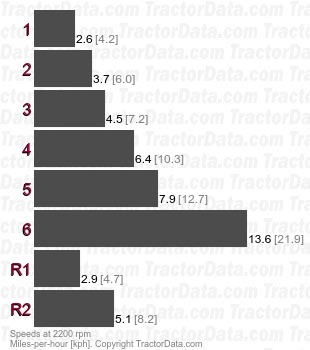

| Speeds |
|
