| | 1954 - 1958 |
| Row-Crop tractor |
|
Series map:
Super 77
Super 88
Super 99
48.9hp*
62.0hp*
88.9hp*
*Estimated engine power for comparison only.
| Engine options |
| Waukesha-Oliver 4.3L 6-cyl gasoline |
| Waukesha-Oliver 4.3L 6-cyl diesel |
| Engine Detail |
| Waukesha-Oliver |
| gasoline |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 265 ci
4.3 L
|
| Bore/Stroke | 3.75x4.00 inches
95 x 102 mm
|
| Air cleaner | oil bath
|
| Compression | 7.3:1
|
| Rated RPM | 1600
|
| Idle RPM | 350-1750
|
| Firing order | 1-5-3-6-2-4
|
| Starter | electric
|
| Starter volts | 6 (early)
|
| | 12 (late)
|
| Coolant capacity | 18 qts
17.0 L
|

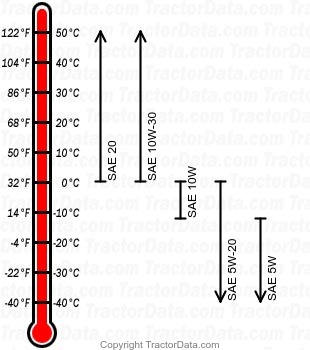

| Engine Oil |
|
| Oil capacity | 7 qts
6.6 L
|
| Oil change | 90 h
|

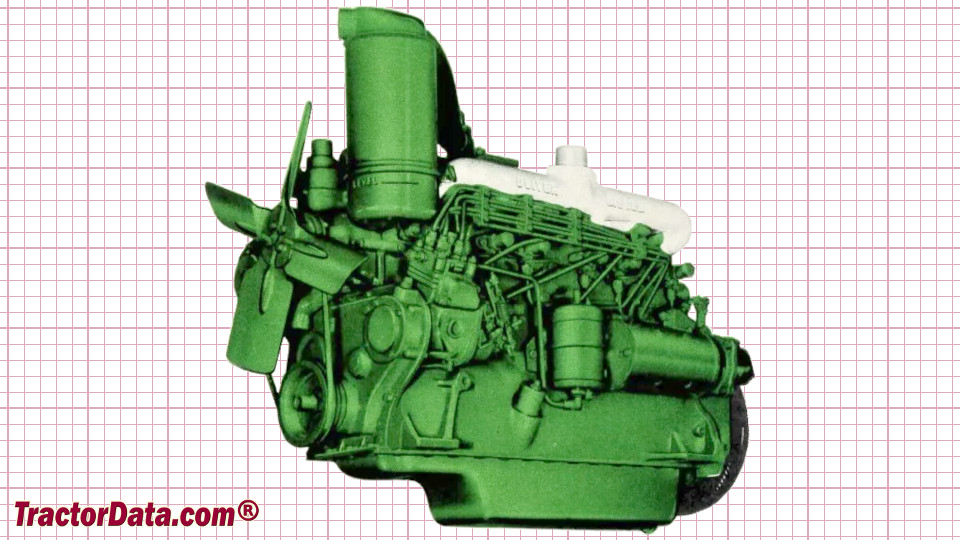

| Oliver Super 88 Engine |
 |
| Engine Detail |
| Waukesha-Oliver |
| diesel |
| 6-cylinder |
| liquid-cooled inline |
| Displacement | 265 ci
4.3 L
|
| Bore/Stroke | 3.75x4.00 inches
95 x 102 mm
|
| Air cleaner | oil bath
|
| Pre-heating | intake air heater
|
| | coolant heater OptOptional
|
| Compression | 15.5:1
|
| Rated RPM | 1600
|
| Idle RPM | 600-1750
|
| Firing order | 1-5-3-6-2-4
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 18 qts
17.0 L
|
| Engine Oil |
|
| Oil change | 60 h
|

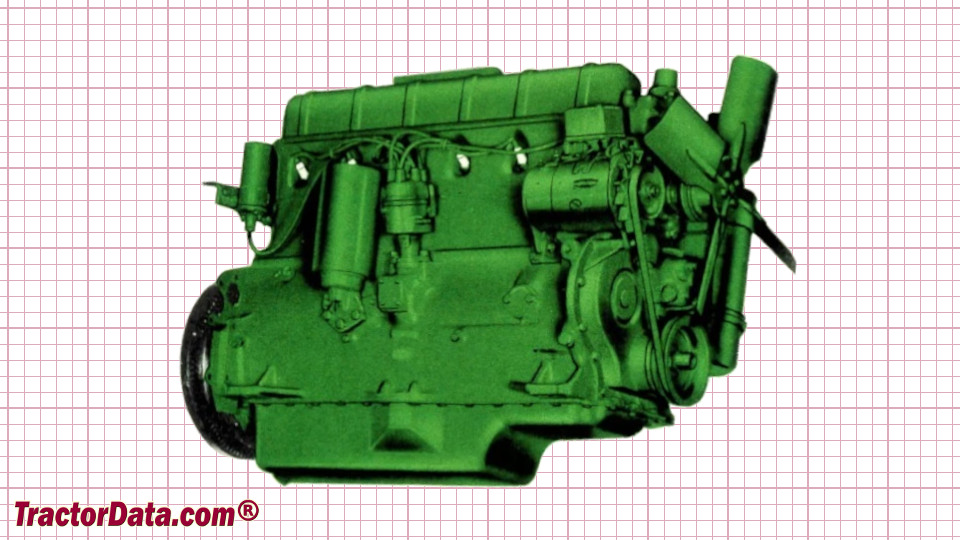

| Oliver Super 88 Engine |
 |
