Tractors > Cockshutt > 560

Cockshutt 560 Tests



Cockshutt 560 tractor photo
1958 - 1961
500 Series
Series map:
550
560
570
42.2hp*
54.4hp*
67.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 682

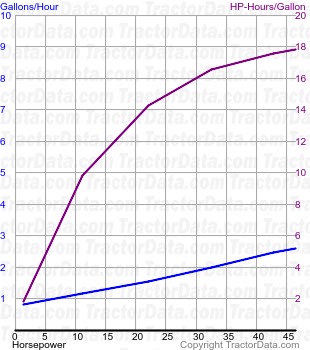

560 fuel use from test 682
Nebraska Tractor Test 682
L4 diesel 6-speed 2WD
November 10 - 26, 1958
Link: Nebraska Tractor Test 682 file
Belt power (max)48.52 hp
36.2 kW
Belt fuel use (max)2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power45.61 hp
34.0 kW
Gear 3 used for power test.
Max pull6,706 lbs
3041 kg
Gear 1 used for pull test.
