Ford-New Holland 8260 Engine


Ford-New Holland 8260 tractor photo
1996 - 1999
Series:816082608360
TM125
Engine Detail
New Holland Genesis
diesel
6-cylinder
liquid-cooled
Displacement:456 ci
7.5 L
Bore/Stroke:4.5x5.0 inches
114 x 127 mm
Compression:17.5:1
Rated RPM:2200
Idle RPM:700-2420
Operating RPM:1500-2200
Torque RPM:1600
Firing order:1-5-3-6-2-4
Starter volts:12
Starter power:4.9 hp
3.7 kW
Coolant capacity:24.8 qts
23.5 L (ROPS)
 26.9 qts
25.5 L (cab)
Intake valve clearance:0.016 inches
0.406 mm (cold)
Exhaust valve clearance:0.018 inches
0.457 mm (cold)
Engine Oil

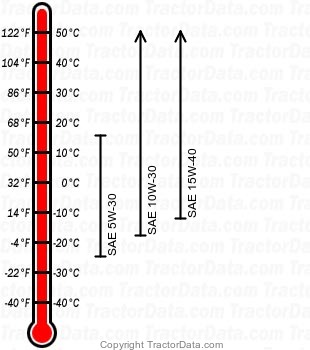

8260 diesel engine oil chart
Oil capacity:20 qts
18.9 L
