New Holland 7740 Tests
|
|
Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing. |
| Tractor Tests | |
| OECD 1658: diesel 16x4 4WD | |
| OECD 1705: diesel 16x16 4WD |
| OCED Tractor Test 1658 | |||
| |||
| OCED Tractor Test 1658 | |

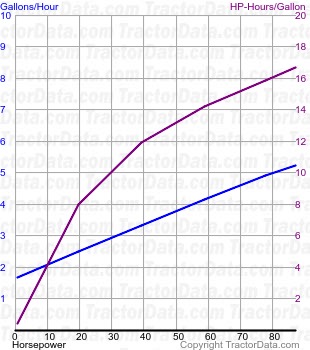

| Diesel 16x4 4WD May 6 - 13, 1992 Link: OCED Tractor Test 1658 file | |
| PTO performance | |
| Power at rated engine speed | 86.86 hp 64.8 kW |
| Fuel use | 5.2 gal/hour 19.7 l/hour |
| Power at rated PTO speed | 87.24 hp 65.1 kW |
| Fuel use | 5.1 gal/hour 19.3 l/hour |
| Drawbar performance | |
| Max power | 76.93 hp 57.4 kW |
| Fuel use | 5.2 gal/hour 19.7 l/hour |
| Gear 5-Low used for power test. | |
| Max pull | 11,352 lbs 5149 kg |
| Gear 2H used for pull test. | |
| OCED Tractor Test 1705 | |||
| |||
| OCED Tractor Test 1705 | |

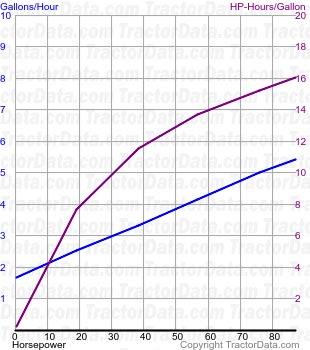

| Diesel 16x16 4WD October 9 - 23, 1995 Link: OCED Tractor Test 1705 file | |
| PTO performance | |
| Power at rated engine speed | 86.96 hp 64.8 kW |
| Fuel use | 5.4 gal/hour 20.4 l/hour |
| Power at rated PTO speed | 86.41 hp 64.4 kW |
| Fuel use | 5.3 gal/hour 20.1 l/hour |
| Drawbar performance | |
| Max power | 74.15 hp 55.3 kW |
| Fuel use | 5.4 gal/hour 20.4 l/hour |
| Gear 6-Low used for power test. | |
| Max pull | 10,210 lbs 4631 kg |
| Gear 4L used for pull test. | |
