Ford-New Holland 7610 Tests
|
|
Note: the Ford-New Holland model 7610 is the same as the Ford 7610. The following data is from the 7610 listing. |
| Tractor Tests | |
| NTTL 1432: diesel 16/4 4WD | |
| NTTL 1433: diesel 16/8 powershift 2WD |
| Nebraska Tractor Test 1432 | |||
| |||
| Nebraska Tractor Test 1432 | |
| Diesel 16/4 4WD April 14 - May 10, 1982 Link: Nebraska Tractor Test 1432 file | |
| PTO performance | |
| Power at rated engine speed | 86.95 hp 64.8 kW |

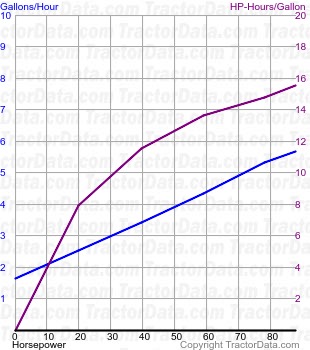

| Fuel use | 5.6 gal/hour 21.2 l/hour |
| Power at rated PTO speed | 86.79 hp 64.7 kW |
| Fuel use | 5.5 gal/hour 20.8 l/hour |
| Drawbar performance | |
| Max power | 74.08 hp 55.2 kW |
| Fuel use | 5.5 gal/hour 20.8 l/hour |
| Gear 6L used for power test. | |
| Max pull | 8,804 lbs 3993 kg |
| Gear 3L used for pull test. | |
| Nebraska Tractor Test 1433 | |||
| |||
| Nebraska Tractor Test 1433 | |
| Diesel 16/8 powershift 2WD April 2 - May 3, 1982 Link: Nebraska Tractor Test 1433 file | |
| PTO performance | |
| Power at rated engine speed | 86.62 hp 64.6 kW |

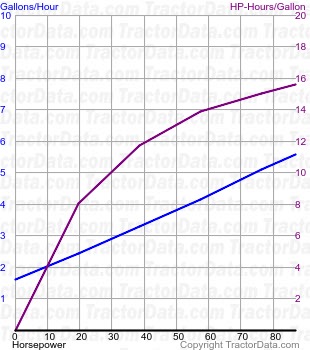

| Fuel use | 5.5 gal/hour 20.8 l/hour |
| Power at rated PTO speed | 86.55 hp 64.5 kW |
| Fuel use | 5.5 gal/hour 20.8 l/hour |
| Drawbar performance | |
| Max power | 72.33 hp 53.9 kW |
| Fuel use | 5.3 gal/hour 20.1 l/hour |
| Gear 6L used for power test. | |
| Max pull | 8,638 lbs 3918 kg |
| Gear 3L used for pull test. | |
