| | 1958 - 1959 |
| 600B Series | | Row-Crop tractor |
|
Series map:
611-B
50.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| J.I. Case |
| gasoline |
| 4-cylinder |
| liquid-cooled |
| Displacement | 164.5 ci
2.7 L
|
| Bore/Stroke | 3.5625x4.125 inches
90 x 105 mm
|
| Air cleaner | oil bath
|
| Compression | 7.26:1
|
| Rated RPM | 2250
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 12 qts
11.4 L
|

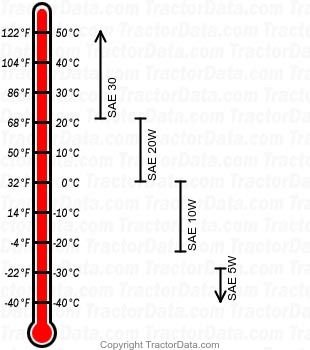

| Engine Oil |
|
| Oil capacity | 5 qts
4.7 L
|
| Oil change | 100 h
|
