Tractors > J.I. Case > 470

J.I. Case 470 Tests



J.I. Case 470 tractor photo
1969 - 1972
Utility tractor
Series map:
470
570
37.8hp*
43.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 774: gasoline 4-speed 2WD
NTTL 785: diesel 4-speed 2WD
Nebraska Tractor Test 774

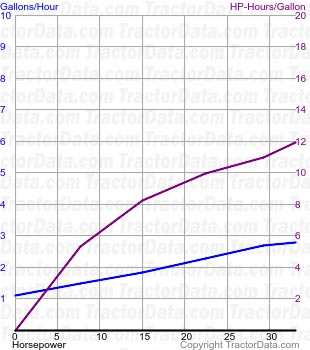

470 fuel use from test 774
Nebraska Tractor Test 774
Gasoline 4-speed 2WD
October 13 - 27, 1960
Link: Nebraska Tractor Test 774 file
PTO performance
Power at rated engine speed33.11 hp
24.7 kW
Fuel use2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power29.15 hp
21.7 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 3 used for power test.
Max pull4,362 lbs
1978 kg
Gear 1 used for pull test.
Nebraska Tractor Test 785

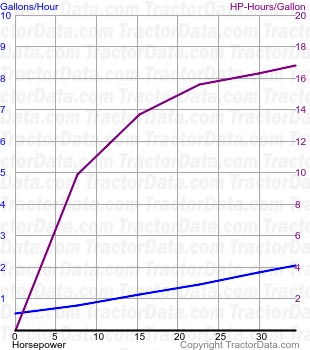

470 fuel use from test 785
Nebraska Tractor Test 785
Diesel 4-speed 2WD
April 6 - 15, 1961
Link: Nebraska Tractor Test 785 file
PTO performance
Power at rated engine speed34.38 hp
25.6 kW
Fuel use2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power30.33 hp
22.6 kW
Fuel use2.1 gal/hour
7.9 l/hour
Gear 3 used for power test.
Max pull4,506 lbs
2043 kg
Gear 1 used for pull test.
